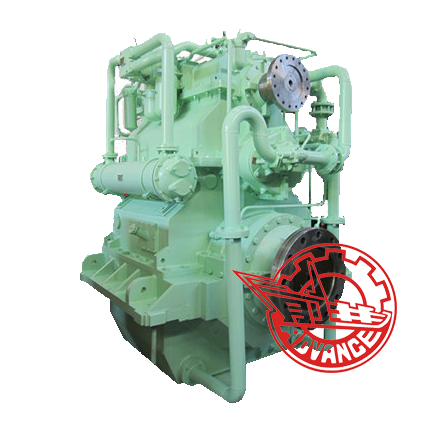

GCS/GCST/GCSE–series Marine Gearbox


Description: GCS/GCST/GCSE-series marine gearbox is designed of one-stage speed reduction, input and output vertically offset and rotating in contrary

direction, possessing functions of clutching & de-clutching and speed reduction. It can be equipped with a distributor for CPP oil supply at front end of

output, and PTO at top.

Main Data:

Model	Input Speed (r/min)	Reduction Ratio (i)	Trans. Capacity (kW/r·min-1)	Rated Thrust (kN)	Net Weight (kg)
GCS320	400-1800	1.9688	0.537	100	320
		2.5185
		2.9583
		3.5238
		4.0
GCST5	400-1800	4.5	0.537	120	445
		5
		5.55
		5.947
GCSE5	400-1800	6.5-8	0.537	170	570
GCSE5A	400-1800	6.42	0.537	175	475
GCS350	400-1800	2.0	0.684	113	350
		2.5566
		3.0
		3.5714
		4.0526
GCST6	400-1800	4.5	0.684	140	480
		5
		5.55
		5.947
GCSE6	400-1800	6.5-8	0.684	200	615
GCS390	400-1800	2.0323	0.919	140	390
		2.4815
		2.9167
		3.4762
		3.9474
GCST9	400-1800	4.5	0.919	220	545
		5
		5.55
		5.947
GCSE9	400-1800	6.5-8	0.919	270	700
GCS410	400-1600	2.0	1.169	175	410
		2.5357
		2.960
		3.50
		3.95
GCST11	400-1600	4.52	1.169	220	570
		5.043
		5.52
		5.95
GCSE11	400-1600	6.5-8	1.169	270	735
GCS450	400-1600	1.9730	1.573	220	455
		2.5484
		2.9286
		3.5833
		4.0
GCST15	400-1600	4.464	1.573	270	630
		5.08
		5.458
		5.955
GCST20	400-1400	4.5	2.051	284	680
		5
		5.5
		6
GCSE15	400-1600	6.5-8	1.573	300	810
GCS490	400-1400	2.0323	2.051	270	490
		2.4815
		3.0870
		3.4762
		3.9474
GCSE20	400-1400	6.5-8	2.051	350	875
GCS535	400~1800	5.0526	0.98	270	535
GCS535B	400~1800	4.7	0.98	270	535
GCS540	400-1200	1.9714	2.647	284	540
		2.4667
		3.0
		3.5217
		3.9524
GCST26	400-1200	4.577	2.647	350	750
		5.042
		5.59
		5.952
GCSE26	400-1200	6.5-8	2.647	400	960
GCS590	400-1200	1.9714	3.448	360	590
		2.4667
		3.0
		3.5217
		3.9524
GCS600	400-1200	3.077	4.1625	360	600
GCST33	400-1200	4.542	3.448	540	820
		5.045
		5.6
		5.947
GCST34	400-1200	5.33	3.448	450	860
GCSE33	400-1200	6.5-8	3.448	550	1055
GCS660	400-1200	2.0	4.625	540	668
		2.536
		2.96
		3.5
		3.95
GCST44	400-1200	4.52	4.625	700	924
		5.0
		5.5714
		5.96
GCSE44	400-1200	6.5-8	4.625	800	1185
GCS700B	400-1200	2.000	4.744	450	700
		2.5517
		3.000
		3.5217
		4.000	4.623
		4.4737	4.183
GCS740A	400-1200	2.92857	4.625	450	740
GCS750	300-900	1.9714	6.99	700	750
		2.4667
		3.0
		3.5217
		3.9524
GCST66	300-900	4.4815	6.99	1000	1064
		4.96
		5.4348
		6.0
GCS760	300-900	1.941	8.111	750	768
		2.536
		3.0
		3.5
		3.95
GCS780	400-1200	2~4.85	4.625	450	780
GCST77	300-900	4.5	8.111	1000	1100
		5
		5.5
		6
GCS850	300-800	1.9714	9.6	800	855
		2.4667
		3.0
		3.5217
		3.9524
GCST91	300-800	4.5	9.6	1000	1190
		5
		5.5
		6
GCS900	200-800	2.0	11.282	980	900
		2.5172
		3.08
		3.4348
		4.1
GCST108	200-800	4.5	11.282	1400	1230
		5
		5.5
		6
GCS880	200-650	2.0	12.063	1000	880
		2.5357
		2.960
		3.50
		3.95
GCST115	200-650	4.5	12.063	1400	1260
		5
		5.5
		6
GCS950	200-650	2	14	1200	965
		2.536
		2.96
		3.5
		3.95
GCST135	200-650	4.5	14	1400	1350
		5
		5.5
		6
GCS1000	200-560	2.0	17.7143	1400	1018

Model	Input Speed (r/min)	Reduction Ratio (i)	Trans. Capacity (kW/r·min-1)	Rated Thrust (kN)	Net Weight (kg)
GCS320	400-1800	1.9688	0.537	100	320
		2.5185
		2.9583
		3.5238
		4.0
GCST5	400-1800	4.5	0.537	120	445
		5
		5.55
		5.947
GCSE5	400-1800	6.5-8	0.537	170	570
GCSE5A	400-1800	6.42	0.537	175	475
GCS350	400-1800	2.0	0.684	113	350
		2.5566
		3.0
		3.5714
		4.0526
GCST6	400-1800	4.5	0.684	140	480
		5
		5.55
		5.947
GCSE6	400-1800	6.5-8	0.684	200	615
GCS390	400-1800	2.0323	0.919	140	390
		2.4815
		2.9167
		3.4762
		3.9474
GCST9	400-1800	4.5	0.919	220	545
		5
		5.55
		5.947
GCSE9	400-1800	6.5-8	0.919	270	700
GCS410	400-1600	2.0	1.169	175	410
		2.5357
		2.960
		3.50
		3.95
GCST11	400-1600	4.52	1.169	220	570
		5.043
		5.52
		5.95
GCSE11	400-1600	6.5-8	1.169	270	735
GCS450	400-1600	1.9730	1.573	220	455
		2.5484
		2.9286
		3.5833
		4.0
GCST15	400-1600	4.464	1.573	270	630
		5.08
		5.458
		5.955
GCST20	400-1400	4.5	2.051	284	680
		5
		5.5
		6
GCSE15	400-1600	6.5-8	1.573	300	810
GCS490	400-1400	2.0323	2.051	270	490
		2.4815
		3.0870
		3.4762
		3.9474
GCSE20	400-1400	6.5-8	2.051	350	875
GCS535	400~1800	5.0526	0.98	270	535
GCS535B	400~1800	4.7	0.98	270	535
GCS540	400-1200	1.9714	2.647	284	540
		2.4667
		3.0
		3.5217
		3.9524
GCST26	400-1200	4.577	2.647	350	750
		5.042
		5.59
		5.952
GCSE26	400-1200	6.5-8	2.647	400	960
GCS590	400-1200	1.9714	3.448	360	590
		2.4667
		3.0
		3.5217
		3.9524
GCS600	400-1200	3.077	4.1625	360	600
GCST33	400-1200	4.542	3.448	540	820
		5.045
		5.6
		5.947
GCST34	400-1200	5.33	3.448	450	860
GCSE33	400-1200	6.5-8	3.448	550	1055
GCS660	400-1200	2.0	4.625	540	668
		2.536
		2.96
		3.5
		3.95
GCST44	400-1200	4.52	4.625	700	924
		5.0
		5.5714
		5.96
GCSE44	400-1200	6.5-8	4.625	800	1185
GCS700B	400-1200	2.000	4.744	450	700
		2.5517
		3.000
		3.5217
		4.000	4.623
		4.4737	4.183
GCS740A	400-1200	2.92857	4.625	450	740
GCS750	300-900	1.9714	6.99	700	750
		2.4667
		3.0
		3.5217
		3.9524
GCST66	300-900	4.4815	6.99	1000	1064
		4.96
		5.4348
		6.0
GCS760	300-900	1.941	8.111	750	768
		2.536
		3.0
		3.5
		3.95
GCS780	400-1200	2~4.85	4.625	450	780
GCST77	300-900	4.5	8.111	1000	1100
		5
		5.5
		6
GCS850	300-800	1.9714	9.6	800	855
		2.4667
		3.0
		3.5217
		3.9524
GCST91	300-800	4.5	9.6	1000	1190
		5
		5.5
		6
GCS900	200-800	2.0	11.282	980	900
		2.5172
		3.08
		3.4348
		4.1
GCST108	200-800	4.5	11.282	1400	1230
		5
		5.5
		6
GCS880	200-650	2.0	12.063	1000	880
		2.5357
		2.960
		3.50
		3.95
GCST115	200-650	4.5	12.063	1400	1260
		5
		5.5
		6
GCS950	200-650	2	14	1200	965
		2.536
		2.96
		3.5
		3.95
GCST135	200-650	4.5	14	1400	1350
		5
		5.5
		6
GCS1000	200-560	2.0	17.7143	1400	1018

Model	Input Speed (r/min)	Reduction Ratio (i)	Trans. Capacity (kW/r·min-1)	Rated Thrust (kN)	Net Weight (kg)
GCS320	400-1800	1.9688	0.537	100	320
		2.5185
		2.9583
		3.5238
		4.0
GCST5	400-1800	4.5	0.537	120	445
		5
		5.55
		5.947
GCSE5	400-1800	6.5-8	0.537	170	570
GCSE5A	400-1800	6.42	0.537	175	475
GCS350	400-1800	2.0	0.684	113	350
		2.5566
		3.0
		3.5714
		4.0526
GCST6	400-1800	4.5	0.684	140	480
		5
		5.55
		5.947
GCSE6	400-1800	6.5-8	0.684	200	615
GCS390	400-1800	2.0323	0.919	140	390
		2.4815
		2.9167
		3.4762
		3.9474
GCST9	400-1800	4.5	0.919	220	545
		5
		5.55
		5.947
GCSE9	400-1800	6.5-8	0.919	270	700
GCS410	400-1600	2.0	1.169	175	410
		2.5357
		2.960
		3.50
		3.95
GCST11	400-1600	4.52	1.169	220	570
		5.043
		5.52
		5.95
GCSE11	400-1600	6.5-8	1.169	270	735
GCS450	400-1600	1.9730	1.573	220	455
		2.5484
		2.9286
		3.5833
		4.0
GCST15	400-1600	4.464	1.573	270	630
		5.08
		5.458
		5.955
GCST20	400-1400	4.5	2.051	284	680
		5
		5.5
		6
GCSE15	400-1600	6.5-8	1.573	300	810
GCS490	400-1400	2.0323	2.051	270	490
		2.4815
		3.0870
		3.4762
		3.9474
GCSE20	400-1400	6.5-8	2.051	350	875
GCS535	400~1800	5.0526	0.98	270	535
GCS535B	400~1800	4.7	0.98	270	535
GCS540	400-1200	1.9714	2.647	284	540
		2.4667
		3.0
		3.5217
		3.9524
GCST26	400-1200	4.577	2.647	350	750
		5.042
		5.59
		5.952
GCSE26	400-1200	6.5-8	2.647	400	960
GCS590	400-1200	1.9714	3.448	360	590
		2.4667
		3.0
		3.5217
		3.9524
GCS600	400-1200	3.077	4.1625	360	600
GCST33	400-1200	4.542	3.448	540	820
		5.045
		5.6
		5.947
GCST34	400-1200	5.33	3.448	450	860
GCSE33	400-1200	6.5-8	3.448	550	1055
GCS660	400-1200	2.0	4.625	540	668
		2.536
		2.96
		3.5
		3.95
GCST44	400-1200	4.52	4.625	700	924
		5.0
		5.5714
		5.96
GCSE44	400-1200	6.5-8	4.625	800	1185
GCS700B	400-1200	2.000	4.744	450	700
		2.5517
		3.000
		3.5217
		4.000	4.623
		4.4737	4.183
GCS740A	400-1200	2.92857	4.625	450	740
GCS750	300-900	1.9714	6.99	700	750
		2.4667
		3.0
		3.5217
		3.9524
GCST66	300-900	4.4815	6.99	1000	1064
		4.96
		5.4348
		6.0
GCS760	300-900	1.941	8.111	750	768
		2.536
		3.0
		3.5
		3.95
GCS780	400-1200	2~4.85	4.625	450	780
GCST77	300-900	4.5	8.111	1000	1100
		5
		5.5
		6
GCS850	300-800	1.9714	9.6	800	855
		2.4667
		3.0
		3.5217
		3.9524
GCST91	300-800	4.5	9.6	1000	1190
		5
		5.5
		6
GCS900	200-800	2.0	11.282	980	900
		2.5172
		3.08
		3.4348
		4.1
GCST108	200-800	4.5	11.282	1400	1230
		5
		5.5
		6
GCS880	200-650	2.0	12.063	1000	880
		2.5357
		2.960
		3.50
		3.95
GCST115	200-650	4.5	12.063	1400	1260
		5
		5.5
		6
GCS950	200-650	2	14	1200	965
		2.536
		2.96
		3.5
		3.95
GCST135	200-650	4.5	14	1400	1350
		5
		5.5
		6
GCS1000	200-560	2.0	17.7143	1400	1018

Application:

Application Field: GCS/GCST/GCSE-series marine gearbox is widely used in cargo ship, tanker, container and ocean fishing ships.

Application Example:

A deep-sea stern ramp freezer trawler with GCST33A gearbox

A deep-sea controllable trawler with GCST44A gearbox

A 3200HP tug with GCS450 gearbox

An ocean graphic research vessel with GCS320 gearbox

Technical : Note: If any request, special order is optional for product with special ratio
