Description:
XJ-series concrete mixer planetary reducer is of two-stage planetary reduction structure, featuring in high in reliability, compact in structure and low in maintenance requirement.
Main Data:
| Model | XJ10 | XJ12 | |
| Max. output torque | Nm | 62000 | 72000 |
| Reduction ratio | I= | 134.61:1 | 143.6:1 |
| Tank capacity | m3 | 8~12 | 10~12 |
| Max. install angle of drum | 15° | 15° | |
| Max. input speed | r/min | 2500 | 2500 |
| Max. output speed | r/min | 18 | 17 |
| Reducer weight (no oil) | kg | 350 | 350 |
| Lubrication oil capacity | L | ~11 | ~11 |
| Max flange swing angle |

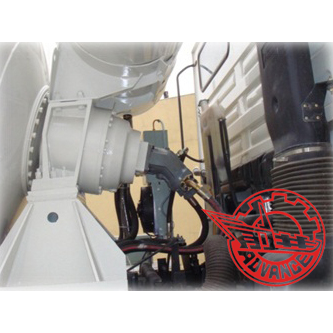

Application: XJ-series concrete mixer planetary reducer is suitable as main reduction mechanism of concrete mixer drum.
