Description:

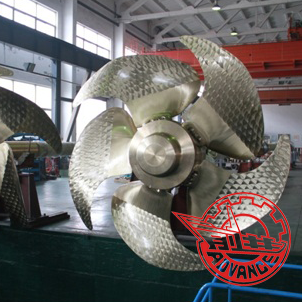

 Based on shafting types, HF/HI/HS series CPP can be designed as multiple modes of single-engine-single-propeller, double-engine-double-propeller and double-engine-single-propeller etc. Through hydrodynamic calculation, structural design analysis, material well selection, the products are high in reliability, simple in structure and convenient in maintenance. Besides, the CPP system can be equipped with sorts of PTO via the transmission, to drive one or more load (shaft generator etc), thus satisfying demands of different hull forms and functions.



Features

1. Customized design: Since each ship has different hull forms, our engineers, based on the calculations of latest hydrodynamics theory and tank test results, will design the most suitable propeller on actual wake of each ship, ensuring best propeller efficiency with reducing vibration and noise as much as possible.

2. Serialization: Take use of FEM design tool to do optimization on blades and hub mechanism. Three CPP hub series that have been developed can satisfy ships with different hull forms. The hub diameter is up to 2m at maximum.

3. Low Pressure and Smoothness: Though successively optimizing and improving, the CPP system can produce a low oil pressure, thus increasing smoothness and reliability when blade adjusting pitch.

4. Integration: CPP control system based on PLC has very high flexibility and redundancy. With convenient visualized system setting, users may select control lever / DP system on demand.

5. Blade section geometry: Cooperated with Marin Company, it makes optimization to effectively reduce cavity, thus increasing propulsion efficiency.

6. OD-Box (Distributor): It is installed at front end of the gearbox, convenient to install, inspect and maintain.

7. Unique security design: In case of hydraulic trouble, pitch will be secured at the current position no matter at forward or backward condition.

8. Integration of hydraulic systems of CPP and gearbox: Save installation space and lower installation cost。

Main Data:

b Model	Trans. Capacity （kW/rpm）	Min Blade Dia. (mm)	Max Blade Dia. (mm)	Max. Speed (rpm)
350	1.35	1100	1500	610
400	2.02	1400	1700	480
450	2.88	1500	1950	450
500	3.95	1600	2150	420
550	5.25	1800	2350	370
600	6.82	2000	2600	340
650	8.67	2100	2800	320
700	10.83	2300	3000	290
750	13.32	2500	3250	270
800	16.17	2600	3450	260
850	19.40	2800	3650	240
900	23.02	3000	3900	230
950	27.08	3100	4100	220
1000	31.58	3300	4300	200
1100	42.04	3600	4750	190
1200	54.57	4000	5200	170
1300	73.56	4300	5650	160
1400	91.88	4600	6050	150
1500	113.00	5000	6500	140

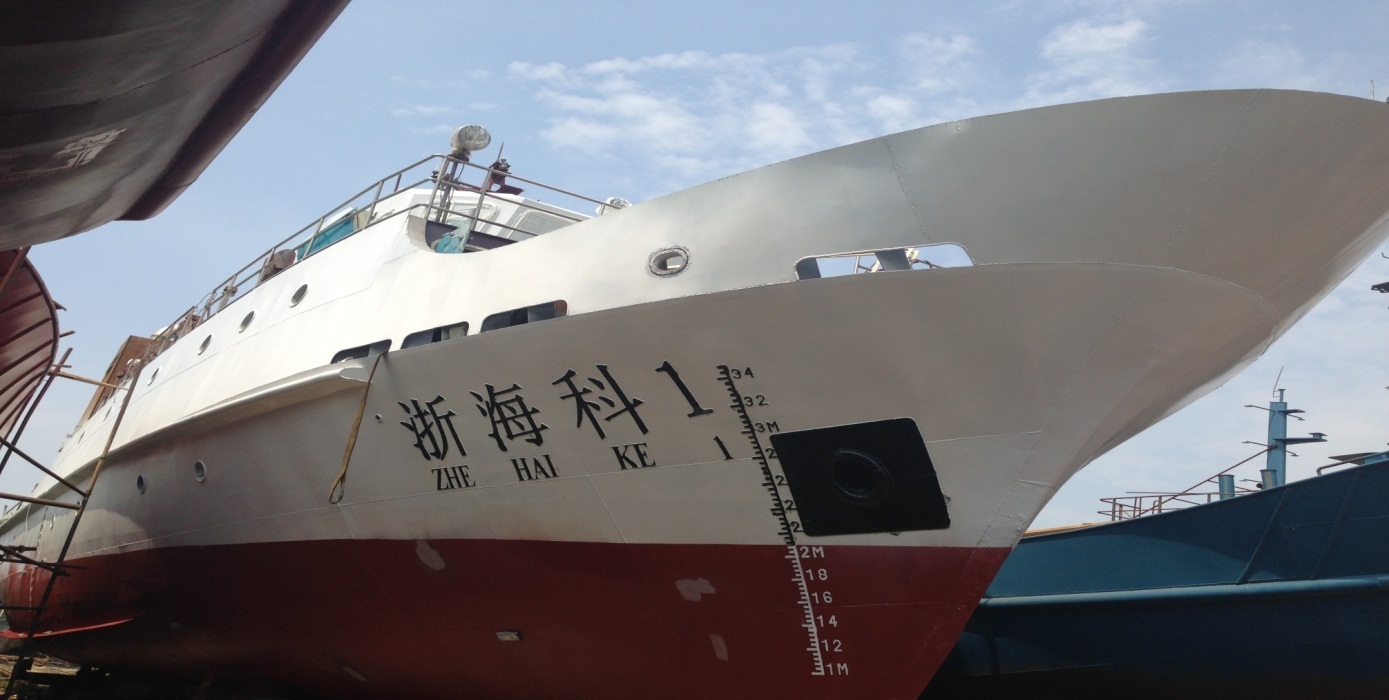

Application: HF/HI/HS series CPP are widely used in ocean engineering ships, tanker, dredger, public service ships, container vessels, tugboats and fishing ships etc.
