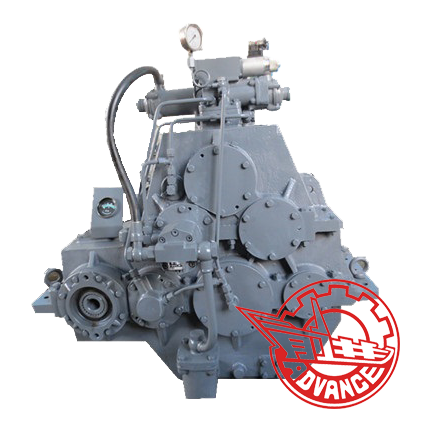

Description: 2LZF1100 marine gearbox possesses functions of speed increasing and clutching and de-clutching. The gearbox has one input and two outputs to drive 2 vane pumps. It applies electrically controlled shifting clutch structure, featuring in quick in gear shifting, soft and smooth in engagement.
Main Data:
| Input speed | 1000r/min | ||
| Reduction ratio | 2.98 | Trans. capacity | 0.257kw/r/min |
| Control way | Push-and-pull flexible shaft, electrically | ||
| Center distance | 406mm | ||
| L×W×H | 922×1018×946mm | ||
| Net weight | 650kg | ||
| Bell housing | NO | ||
Application:2LZF1100 clutch transfer case is used to drive pump and motor as marine auxiliary gearbox.
