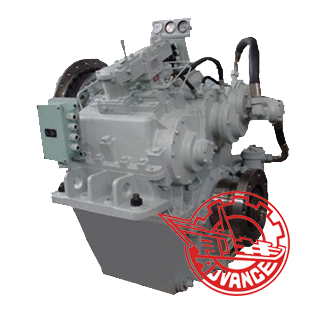

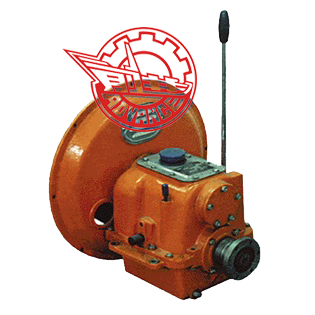

120B Marine Gearbox

Description: Marine Gearbox 120B possesses functions of speed reduction, ahead and astern clutching and bearing propeller thrust. It is designed of vertically

offset and one-stage transmission, featuring in small in volume, light in weight and easy in dismantle & reassemble and maintain.

Main Data:

Input speed	750-1800r/min
Reduction ratio	2.03、2.81	Trans. capacity	0.088kw/r/min
	3.73		0.044kw/r/min
Control way	Push-and-pull flexible shaft, electrically
Rated thrust	25KN
Center distance	190mm
L×W×H	605×744×770mm
Net weight	400kg
Flywheel	6135Ca、4120、SAE14
Bell housing	6135Ca、4120、SAE1
