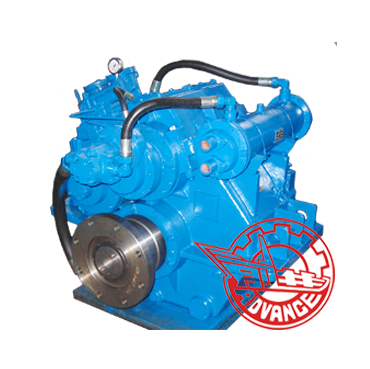

Description:Marine Gearbox HC1000 possesses functions of speed reduction, ahead and astern clutching and bearing propeller thrust. It is designed of vertically offset and one-stage transmission, featuring in compact in structure and easy in dismantle & reassemble and maintain.
Main Data:
Input speed 600-1900r/min Reduction ratio 2、2.5、3.04、3.48 Trans. capacity 0.735kw/r/min 4.06 0.65kw/r/min Control way Push-and-pull flexible shaft, electrically, pneumatically Rated thrust 110KN Center distance 335mm L×W×H 1082x1120x990mm Net weight 1700kg Flywheel Depend on engine flywheel Bell housing SAE00、0 Application: Marine Gearbox HC1000 is suitable for passenger, container and multi-purpose boats. Technical Tel:+86-13816230777
