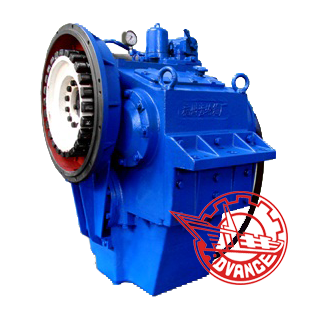

Description: Marine Gearbox D300A possesses functions of speed reduction, ahead and astern clutching and bearing propeller thrust. It is designed of vertically offset and one-stage transmission, featuring in small in volume, large in ratio, light in weight and easy in dismantle & reassemble and maintain.
Main Data:
Input speed | 1000-2500r/min | ||
Reduction ratio | 4.00 | Trans. capacity | 0.257kw/r/min |
4.48 | 0.243kw/r/min | ||
5.05 | 0.221kw/r/min | ||
5.52、5.90 | 0.184kw/r/min | ||
6.56、7.06 | 0.147kw/r/min | ||
7.63 | 0.125kw/r/min | ||
Control way | Push-and-pull flexible shaft, electrically, pneumatically | ||
Rated thrust | 60KN | ||
Center distance | 355mm | ||
L×W×H | 786×980×1041mm | ||
Net weight | 940kg | ||
Flywheel | 12V135、SAE18、16、14 | ||
Bell housing | 12V135、SAE0、1 | ||
Application: Marine Gearbox D300A is suitable for fishing, tug, engineering and transport boats.
