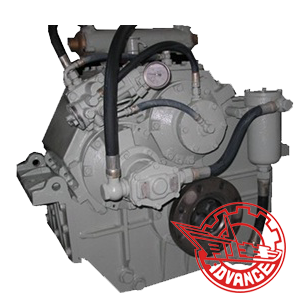

Description: Marine Gearbox HC300 possesses functions of speed reduction, ahead and astern clutching and bearing propeller thrust. It is designed of vertically offset and one-stage transmission, featuring in small in volume, large in ratio, and light in weight.
Main Data:
Input speed | 700-2500r/min | ||
Reduction ratio | 1.5、1.87、2.04、2.23、2.54、3、3.53 | Trans. capacity | 0.257kw/r/min |
4.1、4.47 | 0.2kw/r/min | ||
4.61 | 0.184kw/r/min | ||
4.94 | 0.147kw/r/min | ||
5.44 | 0.13kw/r/min | ||
Control way | Push-and-pull flexible shaft, electrically, pneumatically | ||
Rated thrust | 50KN | ||
Center distance | 264mm | ||
L×W×H | 680×930×880mm | ||
Net weight | 680kg | ||
Flywheel | 12V135、12V150、SAE18、16、14 | ||
Bell housing | 12V135、12V150、SAE0、1 | ||
Application: Marine Gearbox HC300 is suitable for small fishing, traffic boat in inner river and offshore and transport boats.
