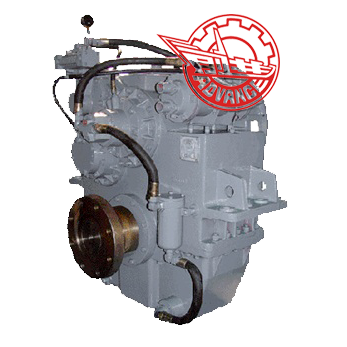

Description: Marine Gearbox HC600A possesses functions of speed reduction, ahead and astern clutching and bearing propeller thrust. It is designed of
vertically offset and one-stage transmission, featuring in small in volume and light in weight.
Main Data:
Input speed | 1000-2100r/min | ||
Reduction ratio | 2.00、2.48、3.00 | Trans. capacity | 0.48kw/r/min |
3.58 | 0.44kw/r/min | ||
3.89 | 0.40kw/r/min | ||
Control way | Push-and-pull flexible shaft, electrically, pneumatically | ||
Rated thrust | 90KN | ||
Center distance | 320mm | ||
L×W×H | 745*1094*1126mm | ||
Net weight | 1300kg | ||
Flywheel | SAE18、16、14 | ||
Bell housing | SAE00、0 | ||
Application: Marine Gearbox HC600A is suitable for passenger, fishing, and various engineering and transport boats.
