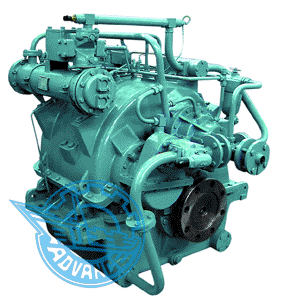

Description: Marine Gearbox HC1250 possesses functions of speed reduction, ahead and astern clutching and bearing propeller thrust. It is designed of vertically offset and one-stage transmission, featuring in compact in structure, and easy in dismantle & reassemble and maintain.
Main Data:
Input speed | 400-1800r/min | ||
Reduction ratio | 2.032、2.481、3.043、3.476 | Trans. capacity | 0.919kw/r/min |
3.947 | 0.850kw/r/min | ||
Control way | Push-and-pull flexible shaft, electrically, pneumatically | ||
Rated thrust | 140KN | ||
Center distance | 390mm | ||
L×W×H | 1155x1330x1435mm | ||
Net weight | 2200kg | ||
Flywheel | Depend on engine flywheel | ||
Bell housing | No | ||
Application: Marine Gearbox HC1250 is suitable for passenger, container, oil and multi-purpose ships.
