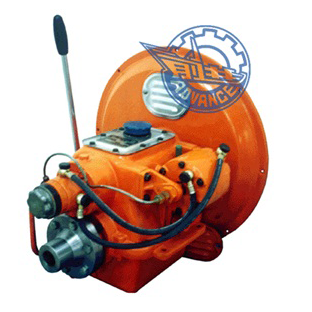

Description: Marine Gearbox 16A possesses functions of speed reduction, ahead and astern clutching and bearing propeller thrust. It is mechanically
controlled, featuring in small in volume and light in weight.
Main Data:
Input speed | 1000-2000r/min | ||
Reduction ratio | 2.07、2.48、2.95、3.35、3.83 | Trans. capacity | 0.012kw/r/min |
Control way | Manually | ||
Rated thrust | 3.5KN | ||
Center distance | 135mm | ||
L×W×H | 422×325×563mm | ||
Net weight | 84kg | ||
Flywheel | 2105C 395、SAE11.5、10 | ||
Bell housing | 2105C 395、SAE3、4 | ||
Application: Marine Gearbox 16A is suitable for small fishing, transport, and rescue boats.
