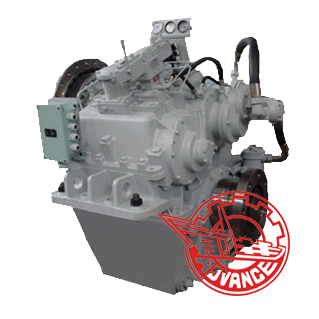

Description: Marine Gearbox HC1200/1 possesses functions of speed reduction, ahead and astern clutching and bearing propeller thrust. It is designed of vertically offset and one-stage transmission, featuring in compact in structure, large in ratio, and easy in dismantle & reassemble and maintain.
Main Data:
Input speed | 600-1800r/min | ||
Reduction ratio | 3.74、3.95、4.45 | Trans. capacity | 0.93kw/r/min |
5 | 0.833kw/r/min | ||
5.25 | 0.695kw/r/min | ||
5.58 | 0.65kw/r/min | ||
Control way | Push-and-pull flexible shaft, electrically, pneumatically | ||
Rated thrust | 140KN | ||
Center distance | 450mm | ||
L×W×H | 1096x1260x1270mm | ||
Net weight | 2500kg | ||
Flywheel | Depend on engine flywheel | ||
Bell housing | SAE00 0 | ||
Application: Marine Gearbox HC1200/1 is suitable for passenger, fishing, tug, engineering and transport boats.
