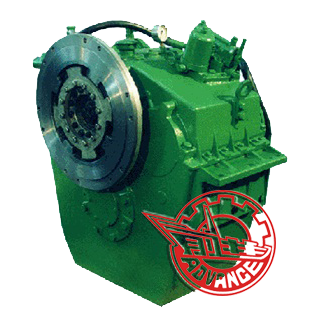

Description:Marine Gearbox HC400 possesses functions of speed reduction, ahead and astern clutching and bearing propeller thrust. It is designed of vertically offset and one-stage transmission, featuring in small in volume, large in ratio, light in weight and high in loading capacity.
Main Data:
Input speed | 1000-1800r/min | ||
Reduction ratio | 1.50、1.77、2.04、2.50、2.86、3.00、3.42 | Trans. capacity | 0.331kw/r/min |
4.06 | 0.279 kw/r/min | ||
4.61、4.94 | 0.190 kw/r/min | ||
Control way | Push-and-pull flexible shaft, electrically, pneumatically | ||
Rated thrust | 82KN | ||
Center distance | 264mm | ||
L×W×H | 641×950×890mm | ||
Net weight | 820kg | ||
Flywheel | SAE18、16、14 | ||
Bell housing | SAE0、1 | ||
Application: Marine Gearbox HC400 is suitable for fishing, tug and various engineering and transport boats.
