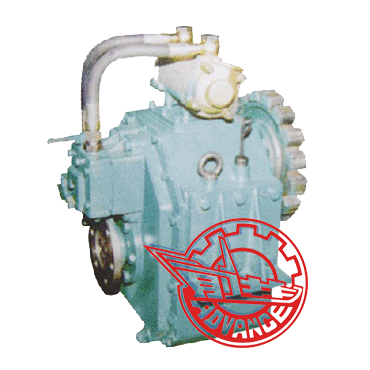

Description: HC65 marine gearbox possesses functions of speed reduction, ahead and astern, clutching and de-clutching, and bearing propeller thrust. Featuring
in compact in structure, small in volume and light in weight, it can match high-speed engine to form ship power unit.
Main Data:
Input speed | 1000-2500r/min | ||
Reduction ratio | 1.53、2.03、2.5 | Trans. capacity | 0.048kw/r/min |
2.96、3.5 | 0.044kw/r/min | ||
Control way | Push-and-pull flexible shaft | ||
Rated thrust | 14.7KN | ||
Center distance | 142mm | ||
L×W×H | 351×380×544mm | ||
Net weight | 130kg | ||
Flywheel | SAE14 11.5 10 | ||
Bell housing | SAE1 2 3 | ||
Application: HC65 marine gearbox is suitable for small boats such as yacht, fishing, traffic and rescue boats.
