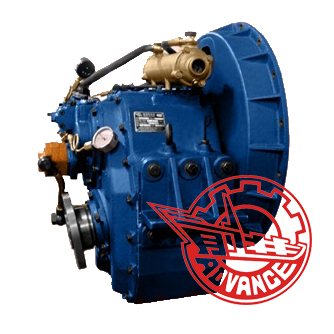

Description: HCA300 marine gearbox possesses functions of speed reduction, ahead and astern, clutching and de-clutching, and bearing propeller thrust. Down angle of the output shaft is 5°.
Main Data:
Input speed | 1000-2500r/min | ||
Reduction ratio | 1.50、2.00、2.57 | Trans. capacity | 0.250kw/r/min |
2.95 | 0.235kw/r/min | ||
Control way | Electrically, push-and-pull flexible shaft | ||
Rated thrust | 40KN | ||
Center distance | 278mm | ||
L×W×H | 620×585×753mm | ||
Net weight | 370kg | ||
Flywheel | SAE16 18 14 | ||
Bell housing | SAE0 1 | ||
Application:HCA300 marine gearbox is suitable for medium high-speed boats such as yacht, traffic, passenger and cargo boats.
