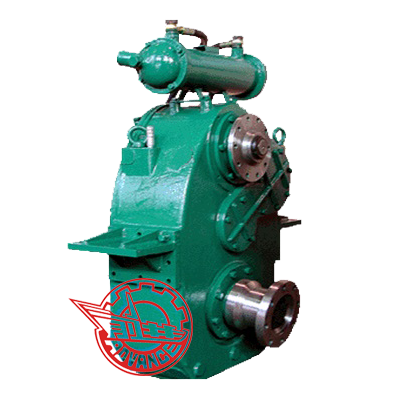

Description: HCV230 marine gearbox possesses functions of speed reduction, ahead and astern, clutching and de-clutching, and bearing propeller thrust. Angle between
input and output is 7°at different side, which makes it suitable for special engine layout.
Main Data:
Input speed | 1000-2200r/min | ||
Reduction ratio | 1.485 | Trans. capacity | 0.184kw/r/min |
1.956 | 0.170kw/r/min | ||
2.483 | 0.146kw/r/min | ||
Control way | Push-and-pull flexible shaft, electrically, pneumatically | ||
Rated thrust | 27.5KN | ||
Center distance | 480mm | ||
L×W×H | 568×620×1020mm | ||
Net weight | 450kg | ||
Flywheel | SAE 14 | ||
Bell housing | SAE 1 | ||
Application:HCV230 marine gearbox is suitable for small and medium high-speed boats such as yacht, traffic, passenger and cargo boats
