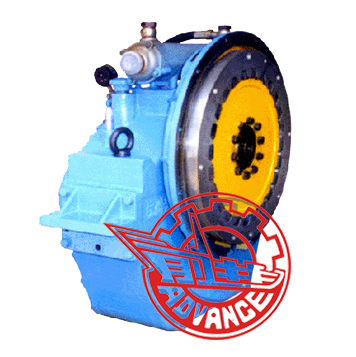

Description: HC200 marine gearbox possesses functions of speed reduction, ahead and astern, clutching and de-clutching, and bearing propeller thrust. Featuring in compact in structure, small in volume and light in weight, it can match high-speed engine to form ship power unit.
Main Data:
Input speed | 1000-2200r/min | ||
Reduction ratio | 1.48、2.0、2.28 | Trans. capacity | 0.147kw/r/min |
Control way | Push-and-pull flexible shaft, electrically, pneumatically | ||
Rated thrust | 27.5KN | ||
Center distance | 190mm | ||
L×W×H | 430×744×708mm | ||
Net weight | 280kg | ||
Flywheel | 6135Ca SAE16 14 | ||
Bell housing | 6135Ca SAE1/2 1 | ||
Application: HC200 marine gearbox is suitable for small and medium high-speed boats such as yacht, traffic, passenger and cargo boats.
