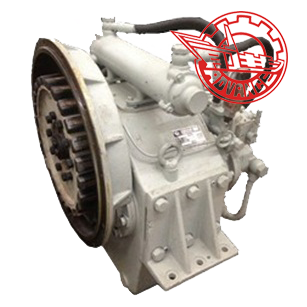

Description: HC201 marine gearbox possesses functions of speed reduction, ahead and astern, clutching and de-clutching, and bearing propeller thrust. Featuring in
compact in structure, small in volume and light in weight, it can match high-speed engine to form ship power unit.
Main Data:
Input speed | 1000-2500r/min | ||
Reduction ratio | 2.46、2.96 | Trans. capacity | 0.147kw/r/min |
3.53 | 0.132kw/r/min | ||
Control way | Push-and-pull flexible shaft, electrically | ||
Rated thrust | 40KN | ||
Center distance | 205mm | ||
L×W×H | 556×691×735mm | ||
Net weight | 350kg | ||
Flywheel | SAE18 16 14 11.5 | ||
Bell housing | SAE0 1 2 | ||
Application:HC201 marine gearbox is suitable for small and medium high-speed boats such as yacht, traffic, passenger and cargo boats.
