Shanghai Zhongying Dynamic Technology Co., Ltd

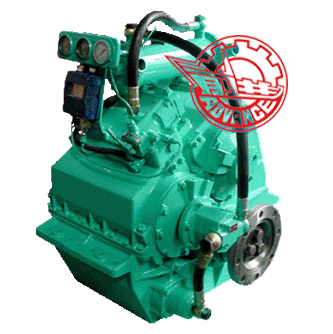

Description: HCQ501 marine gearbox possesses functions of speed reduction, ahead and astern, clutching and de-clutching, and bearing propeller thrust. Featuring in compact in structure, small in volume and light in weight, it can match high-speed engine to form ship power unit.
Main Data:
Input speed | 1000-2300r/min | ||
Reduction ratio | 1.03、1.46、1.56、2.0 | Trans. capacity | 0.404kw/r/min |
2.50 | 0.382kw/r/min | ||
Control way | Push-and-pull flexible shaft, electrically | ||
Rated thrust | 55KN | ||
Center distance | 235mm | ||
L×W×H | 706×856×846mm | ||
Net weight | 560kg | ||
Flywheel | SAE16 18 14 | ||
Bell housing | SAE0 1 | ||
Application:HCQ501 marine gearbox is suitable for medium high-speed boats such as yacht, traffic, passenger and cargo boats.
Technical: Tel:+86-13816230777
