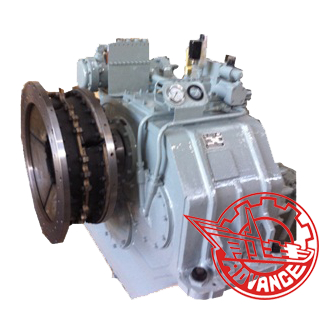

Description: HCA1400 marine gearbox possesses functions of speed reduction, ahead and astern, clutching and de-clutching, and bearing propeller thrust. In order to meet working conditions of high-speed ships, the product has innovations on design of volume and weight, applying quality alloy material and reliable components. Down angle of the output shaft is 7°
Main Data:
Input speed | 1600-2100r/min | ||
Reduction ratio | 2.926 | Trans. capacity | 0.88kw/r/min |
Control way | Push-and-pull flexible shaft, electrically, pneumatically | ||
Rated thrust | 110KN | ||
L×W×H | 826×1300×1250mm | ||
Flywheel | Special | ||
Bell housing | Special | ||
Application: HCQ1400 marine gearbox is suitable for medium and large high-speed passenger ship, harbor surveillance vessel and various special working ships.
