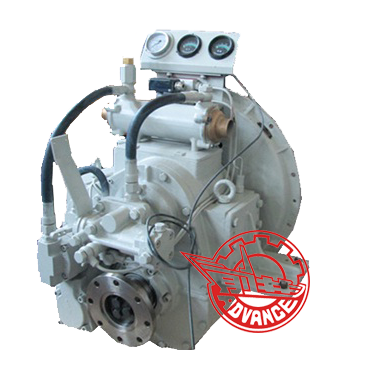

Description: HCA138 marine gearbox possesses functions of speed reduction, ahead and astern, clutching and de-clutching, and bearing propeller thrust.
Down angle of the output shaft is 7°.
Main Data:
Input speed | 1000-2600r/min | ||
Reduction ratio | 1.095、1.28、1.5、2.03、3.24 | Trans. capacity | 0.11kw/r/min |
3.0 | 0.098kw/r/min | ||
Control way | Push-and-pull flexible shaft, electrically | ||
Rated thrust | 25KN | ||
Center distance | 185mm | ||
L×W×H | 530×660×616mm | ||
Net weight | 200kg | ||
Flywheel | SAE14 11.5 | ||
Bell housing | SAE1 2 | ||
Application: HCV138 marine gearbox is suitable for small and medium high-speed boats such as yacht, traffic, passenger and cargo boats.
