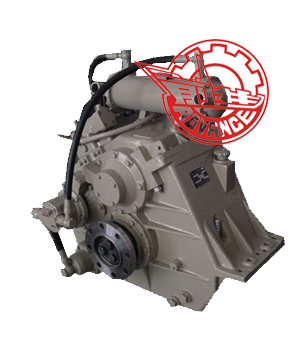

Description: HCQ401 marine gearbox possesses functions of speed reduction, ahead and astern, clutching and de-clutching, and bearing propeller thrust. Featuring in compact in structure, small in volume and light in weight, it can match high-speed engine to form ship power unit.
Main Data:
Input speed | 1000-2300r/min | ||
Reduction ratio | 1.00、1.12、1.25、1.5、1.76、2.04 | Trans. capacity | 0.331kw/r/min |
2.50 | 0.294kw/r/min | ||
Control way | Push-and-pull flexible shaft, electrically | ||
Rated thrust | 50KN | ||
Center distance | 220mm | ||
L×W×H | 640×900×800mm | ||
Net weight | 480kg | ||
Flywheel | SAE16 18 14 | ||
Bell housing | SAE0 1 | ||
Application:HCQ401 marine gearbox is suitable for medium high-speed boats such as yacht, traffic, passenger and cargo boats.
