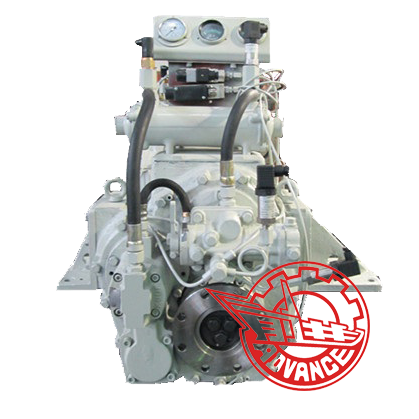

Description: HCQ138 marine gearbox possesses functions of speed reduction, ahead and astern, clutching and de-clutching, and bearing propeller thrust. Featuring in compact in structure, small in volume and light in weight, it can match high-speed engine to form ship power unit.
Main Data:
Input speed | 1000-2600r/min | ||
Reduction ratio | 1.03、1.25、1.50、2.03、2.48 | Trans. capacity | 0.11kw/r/min |
2.95 | 0.098kw/r/min | ||
Control way | Push-and-pull flexible shaft, electrically | ||
Rated thrust | 25KN | ||
Center distance | 165mm | ||
L×W×H | 504×619×616mm | ||
Net weight | 240kg | ||
Flywheel | SAE14 11.5 | ||
Bell housing | SAE1 2 3 | ||
Application:120C marine gearbox is suitable for small and medium high-speed boats such as yacht, traffic, passenger and cargo boats.
