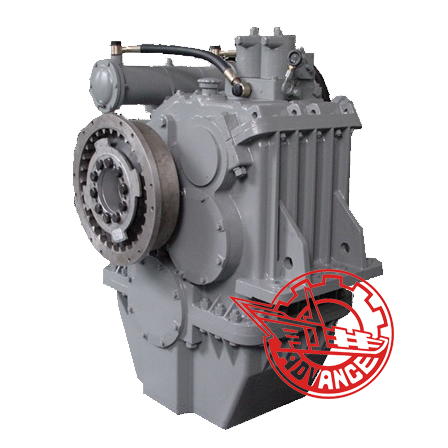

Description: Marine Gearbox HCT1200 possesses functions of speed reduction, ahead and astern clutching and bearing propeller thrust. It is designed of
vertically offset and two-stage transmission, featuring in compact in structure, large in ratio, and convenient in dis- and reassembly and maintenance.
Main Data:
Input speed | 700-1600r/min | ||
Reduction ratio | 5.05、5.60、5.98、6.39、 | Trans. capacity | 0.93kw/r/min |
Control way | Push-and-pull flexible shaft, electrically, pneumatically | ||
Rated thrust | 150KN | ||
Center distance | 500mm | ||
L×W×H | 1188*1350*1547mm | ||
Net weight | 3050kg | ||
Flywheel | Depend on engine flywheel | ||
Bell housing | SAE00 0 | ||
Application: Marine Gearbox HCT1200 is suitable for fishing, tug and various engineering boats
