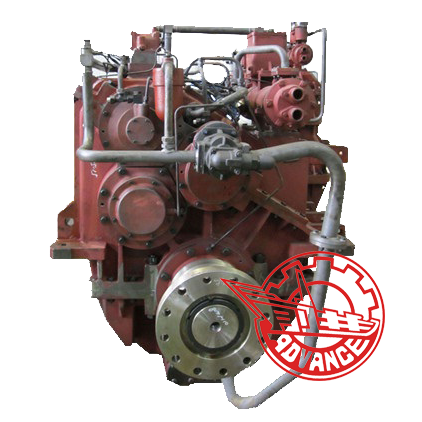

Marine Gearbox HCT1400

Description: Marine Gearbox HCT1400 possesses functions of speed reduction, ahead and astern clutching and bearing propeller thrust. It is designed of

vertically offset and two-stage transmission, featuring in compact in structure, large in ratio, and convenient in dis- and reassembly and maintenance.

Main Data:

Input speed	600-1800r/min
Reduction ratio	4、4.511、5.03、5.52、5.97、 6.48、7.03、7.50、8.01	Trans. capacity	1.03kw/r/min
	8.465		1kw/r/min
	8.593		0.96kw/r/min
	8.984		0.93kw/r/min
	9.118		0.90kw/r/min
	9.552		0.85kw/r/min
Control way	Push-and-pull flexible shaft, electrically, pneumatically
Rated thrust	220KN
Center distance	550mm
L×W×H	1306x1380x1750mm
Net weight	3700kg
Flywheel	Depend on engine flywheel
Bell housing	No
