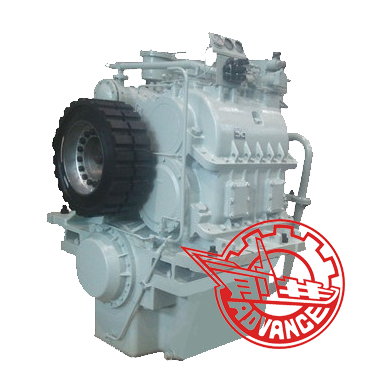

Description:Marine Gearbox HCT1600 possesses functions of speed reduction, ahead and astern clutching and bearing propeller thrust. It is designed of
vertically offset and two-stage transmission, featuring in compact in structure, large in ratio, and convenient in dis- and reassembly and maintenance.
Main Data:
Input speed | 600-1800r/min | ||
Reduction ratio | 4、4.511、5.03、5.52、5.97、 | Trans. capacity | 1.03kw/r/min |
8.465 | 1kw/r/min | ||
8.593 | 0.96kw/r/min | ||
8.984 | 0.93kw/r/min | ||
9.118 | 0.90kw/r/min | ||
9.552 | 0.85kw/r/min | ||
Control way | Push-and-pull flexible shaft, electrically, pneumatically | ||
Rated thrust | 220KN | ||
Center distance | 550mm | ||
L×W×H | 1306x1380x1750mm | ||
Net weight | 3700kg | ||
Flywheel | Depend on engine flywheel | ||
Bell housing | No | ||
Application:Marine Gearbox HCT1600 is suitable for fishing, tug and various engineering boats.
