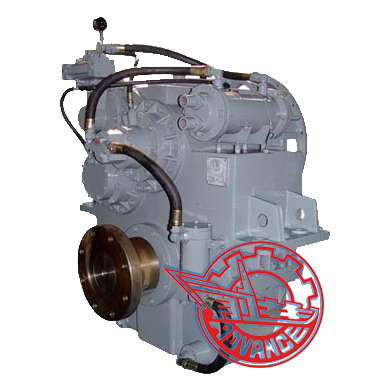

Description: Marine Gearbox HCT600A/1 possesses functions of speed reduction, ahead and astern clutching and bearing propeller thrust. It is designed of vertically offset and two-stage transmission, featuring in small in volume, light in weight and large in ratio.
Main Data:
Input speed | 1000-2100r/min | ||
Reduction ratio | 7.043、7.69、8.23 | Trans. capacity | 0.441kw/r/min |
8.82 | 0.412kw/r/min | ||
9.47 | 0.400kw/r/min | ||
10.10 10.80 | 0.375kw/r/min | ||
11.65 | 0.353kw/r/min | ||
12.57 | 0.331kw/r/min | ||
14.44 | 0.257kw/r/min | ||
15.91 | 0.204kw/r/min | ||
Control way | Push-and-pull flexible shaft, electrically, pneumatically | ||
Rated thrust | 140KN | ||
Center distance | 500mm | ||
L×W×H | 878x1224x1346mm | ||
Net weight | 1700kg | ||
Flywheel | SAE21、18、16 | ||
Bell housing | SAE00、0 | ||
Application: Marine Gearbox MA142 is suitable for small fishing, transport, traffic and passenger boats.
