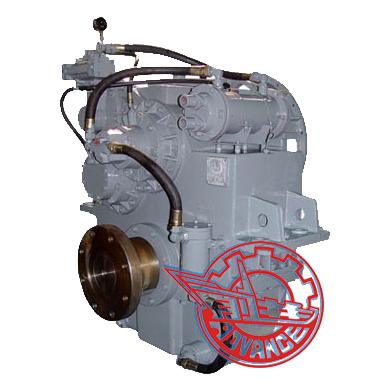

Marine Gearbox HCT600A

Description: Marine Gearbox HCT600A possesses functions of speed reduction, ahead and astern clutching and bearing propeller thrust. It is designed of vertically offset and two-stage transmission, featuring in small in volume, light in weight and large in ratio.

Main Data:

Input speed	1000-2100r/min
Reduction ratio	6.06	Trans. capacity	0.44kw/r/min
	6.49		0.40kw/r/min
	6.97，7.51		0.37kw/r/min
	8.04		0.33kw/r/min
	8.66		0.29kw/r/min
	9.35		0.28kw/r/min
Control way	Push-and-pull flexible shaft, electrically, pneumatically
Rated thrust	90KN
Center distance	415mm
L×W×H	805×1094×1271mm
Net weight	1650kg
Flywheel	SAE18、16、14
Bell housing	SAE00、0
