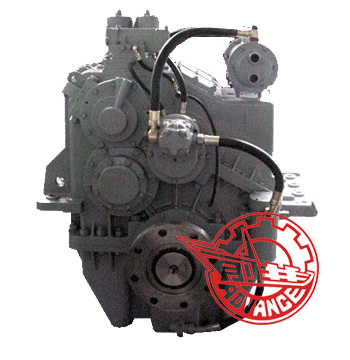

Description: Marine Gearbox HCT800/3 possesses functions of speed reduction, ahead and astern clutching and bearing propeller thrust. It is designed of
vertically offset and two-stage transmission, featuring in compact structure, larger ratio, higher loading capacity and convenient in dis- and reassembly and
maintenance.
Main Data:
Input speed | 800-1800r/min | ||
Reduction ratio | 16.56 | Trans. capacity | 0.597kw/r/min |
17.95 | 0.551kw/r/min | ||
20.2 | 0.491kw/r/min | ||
Control way | Push-and-pull flexible shaft, electrically, pneumatically | ||
Rated thrust | 240KN | ||
Center distance | 736mm | ||
L×W×H | 1235x1570x1789mm | ||
Net weight | 4200kg | ||
Flywheel | SAE21、18、16 | ||
Bell housing | SAE00、0 | ||
Application: Marine Gearbox MA142 is suitable for small fishing, transport, traffic and passenger boats.
