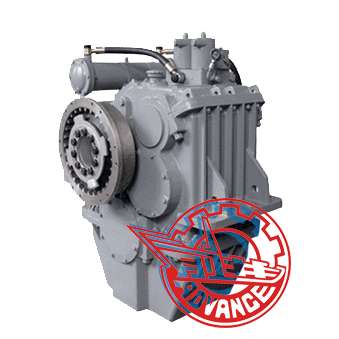

Marine Gearbox HCT800

Description: Marine Gearbox HCT800 possesses functions of speed reduction, ahead and astern clutching and bearing propeller thrust. It is designed of vertically offset and two-stage transmission, featuring in compact structure, larger ratio, higher loading capacity and convenient in dis- and reassembly and maintenance.

Main Data:

Input speed	600-1800r/min
Reduction ratio	4.95、5.57、5.68、5.93、6.43	Trans. capacity	0.625kw/r/min
	6.86		0.588kw/r/min
	7.33		0.551kw/r/min
	7.84		0.515kw/r/min
	8.40		0.480kw/r/min
Control way	Push-and-pull flexible shaft, electrically, pneumatically
Rated thrust	140KN
Center distance	450mm
L×W×H	1056×1280×1425mm
Net weight	2700kg
Flywheel	SAE21、18、16
Bell housing	SAE00、0
