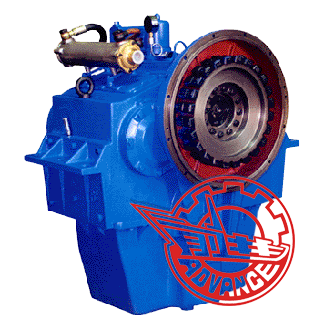

Description: Marine Gearbox J300 possesses functions of speed reduction, ahead and astern clutching and bearing propeller thrust. It is designed of vertically offset and one-stage transmission, featuring in small in volume, large in ratio, light in weight, and convenient in dis- and reassembly and maintenance.
Main Data:
Input speed | 750-2500r/min | ||
Reduction ratio | 2.04、2.54、3.0、3.47 | Trans. capacity | 0.280kw/r/min |
3.95 | 0.257kw/r/min | ||
Control way | Push-and-pull flexible shaft, electrically, pneumatically | ||
Rated thrust | 60KN | ||
Center distance | 264mm | ||
L×W×H | 786×930×864mm | ||
Net weight | 740kg | ||
Flywheel | 12V135、12V150、SAE18、16、14 | ||
Bell housing | 12V135、12V150、SAE0、1 | ||
Application: Marine Gearbox 06 is suitable for small fishing, transport and rescue boats.
Technical Tel:+86-13816230777
