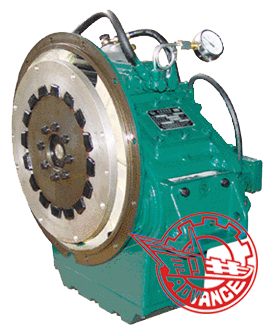

Description:Marine Gearbox MA142 possesses functions of speed reduction, ahead and astern clutching and bearing propeller thrust. It is designed of vertically offset and one-stage transmission, featuring in small in volume and light in weight.
Main Data:
Input speed | 1500-2500r/min | ||
Reduction ratio | 1.97、2.52、3.03 | Trans. capacity | 0.030kw/r/min |
3.54 | 0.026kw/r/min | ||
3.95 | 0.023kw/r/min | ||
4.50 | 0.019kw/r/min | ||
5.06 | 0.016kw/r/min | ||
5.47 | 0.013kw/r/min | ||
Control way | Push-and-pull flexible shaft, electrically, pneumatically | ||
Rated thrust | 8.5KN | ||
Center distance | 142mm | ||
L×W×H | 308×520×540mm | ||
Net weight | 140kg | ||
Flywheel | SAE11.5、10 | ||
Bell housing | SAE2、3 | ||
Application: Marine Gearbox MA142 is suitable for small fishing, transport, traffic and passenger boats.
