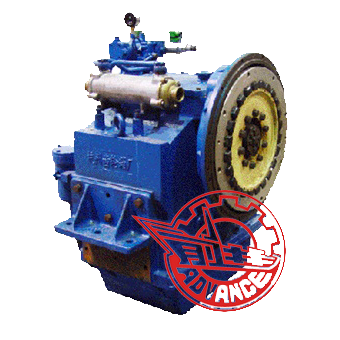

Description: Marine Gearbox 06 possesses functions of speed reduction, ahead and astern clutching and bearing propeller thrust. It is mechanically controlled, featuring in small in volume and light in weight.
Main Data:
Input speed | 1000-2500r/min | ||
Reduction ratio | 4.05、4.53、5.12 | Trans. capacity | 0.147kw/r/min |
5.50 | 0.134kw/r/min | ||
5.95 | 0.110kw/r/min | ||
6.39、6.82 | 0.088kw/r/min | ||
Control way | Push-and-pull flexible shaft, electrically, pneumatically | ||
Rated thrust | 39.2KN | ||
Center distance | 270mm | ||
L×W×H | 594×810×868mm | ||
Net weight | 675kg | ||
Flywheel | SAE18、16、14 | ||
Bell housing | SAE0、1 | ||
Application:Marine Gearbox MB270A is suitable for medium and small fishing, transport, tug, traffic and passenger boats.
