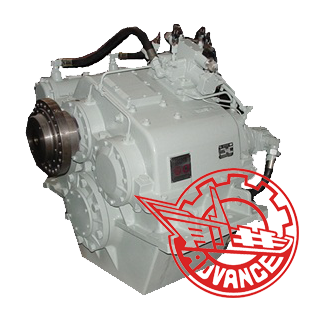

Description: HCQ1601 marine gearbox possesses functions of speed reduction, ahead and astern, clutching and de-clutching, and bearing propeller thrust. In order to meet working conditions of high-speed ships, the product has innovations on design of volume and weight. Applying quality alloy material and reliable components, it can match high-speed engine to form strong ship power unit.
Main Data:
Input speed | 1600-2100r/min | ||
Reduction ratio | 3.04 | Trans. capacity | 1.204kw/r/min |
3.24 | 1.0kw/r/min | ||
Control way | Push-and-pull flexible shaft, electrically | ||
Rated thrust | 120KN | ||
Center distance | 370mm | ||
L×W×H | 1106×1230×1180mm | ||
Net weight | 1550kg | ||
Flywheel | SAE21 18 | ||
Bell housing | NO | ||
Application:HCQ1601 marine gearbox is suitable for medium and large high-speed passenger ship and various special working ships.
